CNC SLANT BED LATHES
SA series
| ITEM / MODEL |
SA-35
|
SA-40
|
SA-45
|
|
| mm |
inch |
mm |
inch |
mm |
inch |
. |
. |
| CAPACITY |
| Swing over bed |
890 |
35 |
1020 |
40 |
1145 |
45 |
. |
. |
| Swing over cross slide |
740 |
29 |
870 |
34 |
995 |
39 |
. |
. |
| Max. cutting diameter |
890 |
35 |
1020 |
40 |
1145 |
45 |
. |
. |
| Distance between center |
mm
|
3200,4200,5200 |
|
inch |
126,165,205 |
| BED & CARRIAGE |
Bed width/
slant angle |
mm |
1430/60 |
|
inch |
53.5/60 |
Carriage bearing
on bed way |
mm |
950 |
|
inch |
37.4 |
| Width of cross slide |
mm |
600 |
|
inch |
23.6 |
| HEADSTOCK |
| Spindle nose |
A2-11 |
A2-15 |
A2-15 |
A2-20 |
A2-20 |
A2-28 |
A2-28 |
| Spindle bore |
mm |
153 |
230 |
255 |
318 |
360 |
410 |
535 |
| inch |
6.02 |
9.05 |
10.03 |
12.51 |
14.17 |
16.14 |
21.06 |
| Spindle taper |
1/20 |
| Gear transmission |
4 - Step |
| Spindle speed |
1st
range rpm |
20-140 |
16-120 |
13-95 |
14-100 |
12-85 |
10-75 |
8-60 |
| 2nd
range rpm |
38-280 |
30-200 |
25-185 |
26-180 |
23-160 |
18-110 |
15-95 |
| 3rd
range rpm |
95-550 |
70-420 |
60-400 |
60-350 |
55-300 |
45-250 |
35-200 |
| 4th
range rpm |
200-1200 |
150-700 |
120-600 |
130-450 |
95-400 |
65-350 |
22-300 |
| TURRET |
| Standard tool post |
Poligon Disc, or
VDI Disc |
| No. of tool stations |
12 |
| Tool shank diameter |
102mm (4") |
| Square shank tool size |
32 x 32 mm (1.25 x1.25") |
| TRAVEL |
| Rapid ravel speed |
X-axis : 8 M (2624ft)/min ;
Z-axis : 10 M (32.8ft)/min |
| Ballscrew diameter |
X-axis: 50mm (2"),
Z-axis: 80mm (3.15") |
| TAILSTOCK |
|
| Quill diameter |
235mm
(9.25") |
| Quill type |
built-in
type, rotating tailstock quill |
| Tailstock spindle traverse |
200mm (7.87") |
| Tailstock spindle taper |
MT # 6 |
| MOTOR |
| AC spindle motor |
37.5/45 kW (50/60 HP) |
| X-axis servo motor |
4.5KW (6 HP) |
| Z-axis servo motor |
4.5KW (6 HP) |
| Hydraulic pump motor |
5.05 kW (7.5HP) |
| Coolant pump motor |
0.37kW (1/2 HP) |
| Control |
FANUC 18T Standard, Other
required-OPT. |
| Machine weight kg (lb) |
750
mm (29.5") Center distance |
16500(36300) |
17000(37400) |
17500(38500) |
| Each
additional 500 mm (19.7") increment |
2200 (4840) |

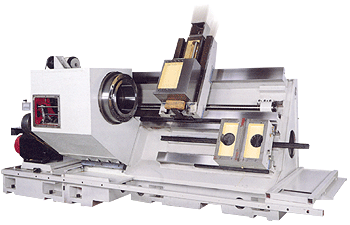

 SA 35
|
|
|
Servo
turret, fast, precise |
Massive tailstock |
| . |
|
|
| . |
|
|
|
Precision spindle, large angular
contact roller bearings |
|
Large
spindle hole |
|
|
|
